Controlling an analog video camera from a computer

Make camera settings deliberate, visible in the notes and stable during the event.

Controlling an analog video camera from a computer can make its settings easier to manage within an observing session. The benefit is practical: exposure, gain and gamma can be selected without repeatedly reaching a camera mounted at the telescope. The control arrangement still needs to preserve a clear relationship between the requested setting, the camera's actual state and the recorded signal.

Begin with a camera that supports the intended controls and a compatible interface. A small microcontroller board can mediate commands where the camera and interface permit it, while the computer presents the controls. This is a general equipment class, not a universal conversion. A camera without a supported control path cannot be assumed to accept commands because its video output works with the recorder.

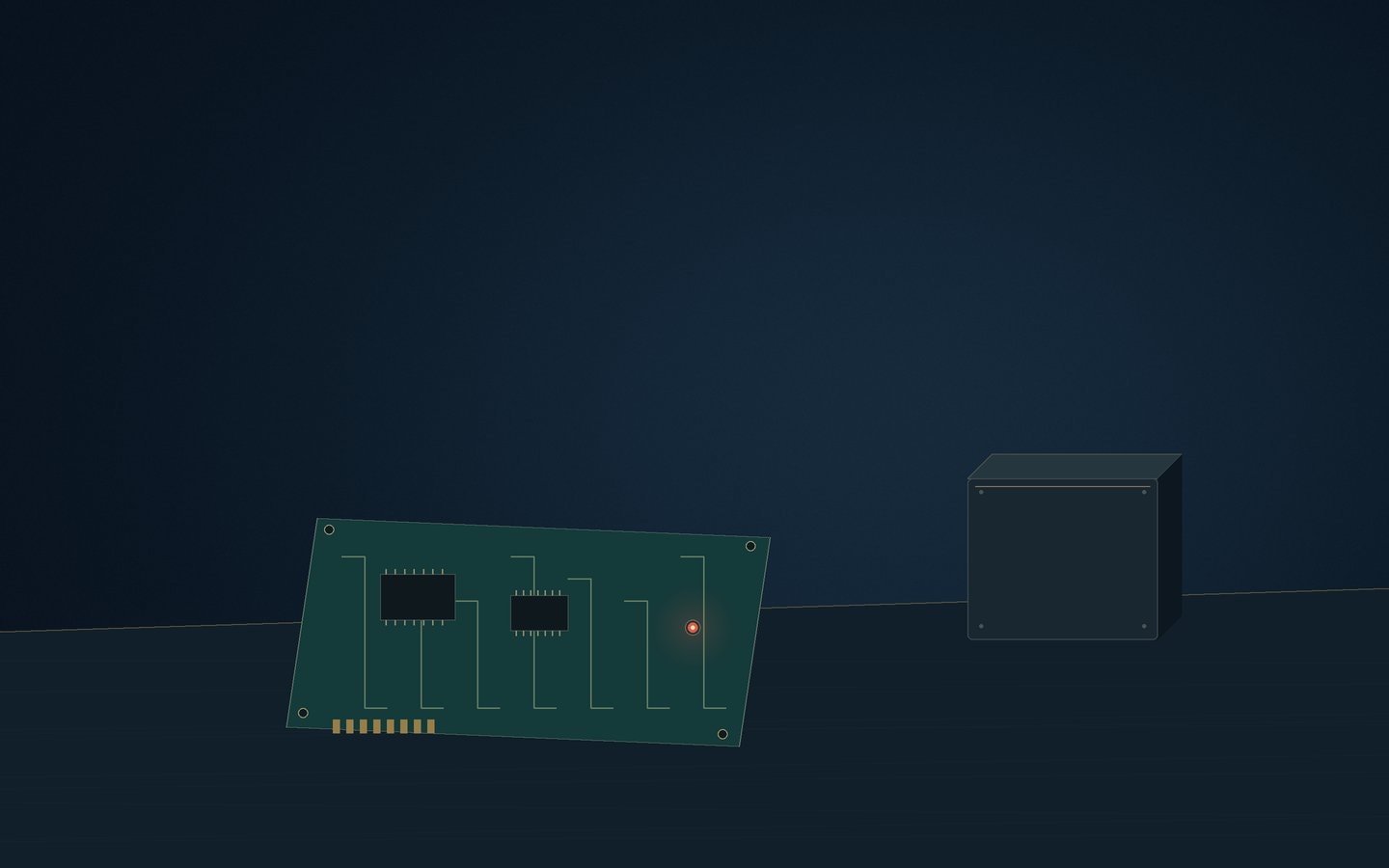

Bare circuit board with a glowing red LED beside a dark camera housing
Bare circuit board with a glowing red LED beside a dark camera housing

Camera buttons and an on-screen menu can be awkward when the camera is attached to the telescope. Reaching the controls can disturb pointing, while a menu may cover the target or nearby comparison stars. Establish the important settings during preparation, then close any menu before treating the recording as usable event evidence. Retain a note of the final settings rather than relying on a menu image that may be absent from the saved file.

A computer interface can make these settings more explicit, but its display must match the camera's behaviour. Determine whether a command is acknowledged, whether the interface reads the current state or simply remembers the last command sent. After a restart, those may differ. An attractive control panel is less useful than a plain one whose relationship to the camera is understood.

Keep a stable observing mode through the event and its surrounding baseline. Automatic changes or unrecorded adjustments can create brightness steps that resemble astronomical changes. If an adjustment is necessary, record where it occurred and treat the affected section accordingly. The broader choices in camera selection include how readily a configuration can be kept stable and documented.

Gain, integration and gamma do different things

Gain changes the amplification applied to the signal. It can enlarge the recorded or displayed variation, but it does not establish that more light was measured. Check whether the gain setting affects the stored values, and examine the target and background together. Excessive amplification can make noise conspicuous while leaving the event less interpretable than the preview suggests.

Integration defines the light-gathering interval. Increasing it may make a faint star more measurable while blending a brief change over a longer interval. A camera may also produce repeated video outputs associated with the same integrated measurement. Document the relationship between the selected integration mode and the actual sequence instead of assuming every output is a fresh exposure.

Wikipedia describes gamma correction as a nonlinear operation on image brightness. A gamma change can therefore alter relative signal levels even if the sky and target remain unchanged. Determine whether it acts on the stored video, a preview or both. Keep it fixed when measuring a brightness sequence unless the analysis explicitly accounts for its effect.

IOTA's analog-camera guidance notes that nonlinear response at high intensities is not a problem for most occultation observations. That does not remove the need to record the setting or distinguish a complete disappearance from subtler changes. Camera response testing explores how a controlled brightness series can clarify the usable range.

A bare board needs a suitable enclosure

A board camera leaves its electronics exposed unless housed appropriately. Use a housing suited to the equipment, with secure mounting and access to the necessary connectors. Avoid arrangements in which the mounting strains the board or a cable carries the camera's weight. Keep the enclosure compatible with the device's environmental and ventilation requirements.

The housing should also permit the camera to be identified and inspected as part of the setup. A connector hidden behind unrelated equipment is harder to check after an interruption. Separate video, control and power roles clearly in the observing notes, even when the connections sit close together. Protecting the board is useful only if the assembled arrangement remains understandable and suitable for use.

Plan cable movement across the mount

A fork-mounted telescope changes the position of the camera relative to the fixed recorder and supply. Route leads with enough freedom for the intended movement while keeping them clear of the fork and other moving parts. Check clearance at the positions expected during the session, including preparation and return to a resting position. A cable that looks tidy at the start can still pull tight elsewhere.

Support the leads so their movement does not tug on a small connector or alter the camera's position. Keep loops manageable and avoid adding unnecessary adapters to a route that already moves. The general checks in field power safety apply to the supply leads. Video and control leads deserve their own inspection for security and reliable operation.

Test controls using the complete recording path. Change a setting deliberately during a trial, verify what the camera does and confirm whether the saved signal reveals the change. Then return to the intended observing mode and inspect a fresh recording. If an analog time overlay is used, check it alongside the camera output as described in video time inserters. The final arrangement should make settings easier to manage while keeping the measurement chain clear.
